M1 Mini Trolling Motor
Designed to be
Lightweight, Fit-in and Easy-to-use.
Highly Adaptable
12V System
50lbs Thrust
Get to know M1 Mini
Compact and easy to handle, it suits multiple vessel types and your comfortable driving position, ensuring adaptability wherever your adventures take you.

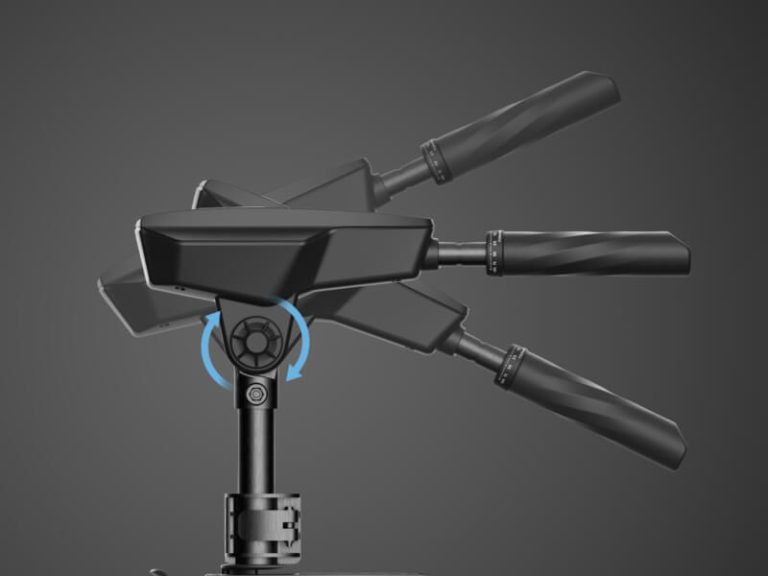

Custom Comfort
Adapts to your preferred riding position with foldable head and telescopic tiller

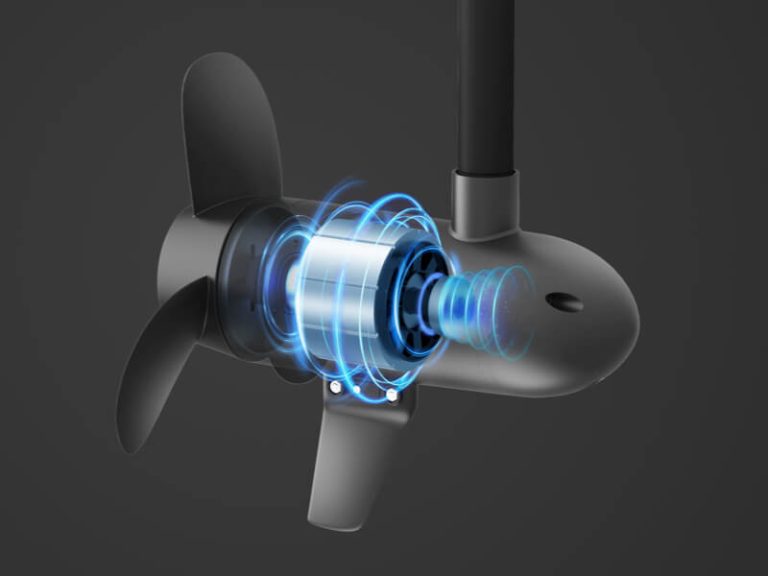

Advanced Efficiency
Offering precise field-oriented control for smoother, quieter, and more efficient operations.

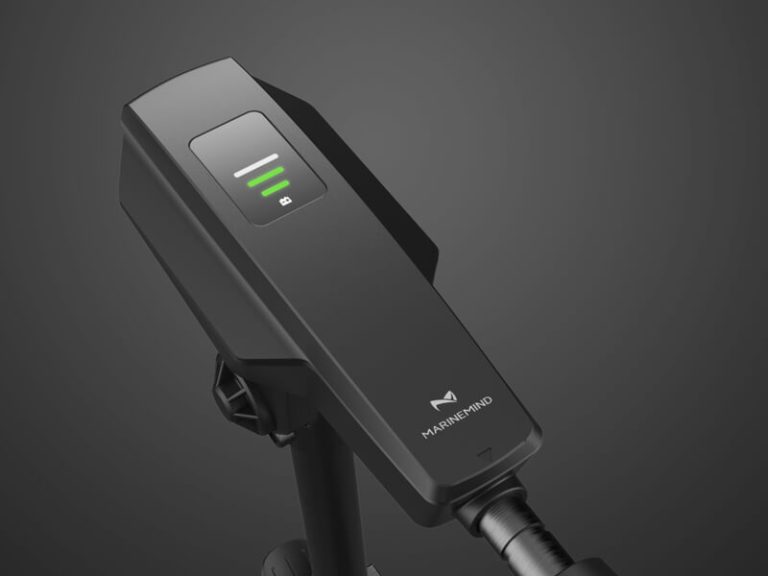

Stay in the Know
Never be caught off guard
with real-time battery indicator
and alarm system.
with real-time battery indicator
and alarm system.

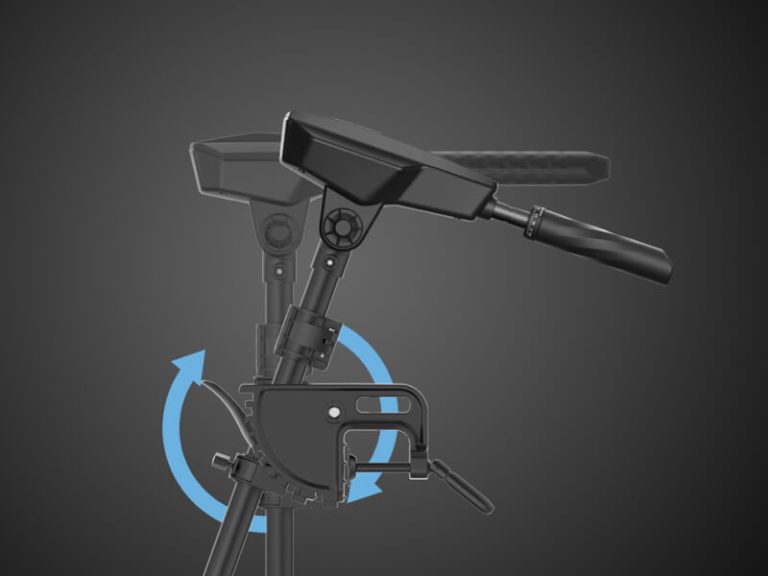

10 levels of trim
Ensures precise adaptability for every fishing condition and personal preference.

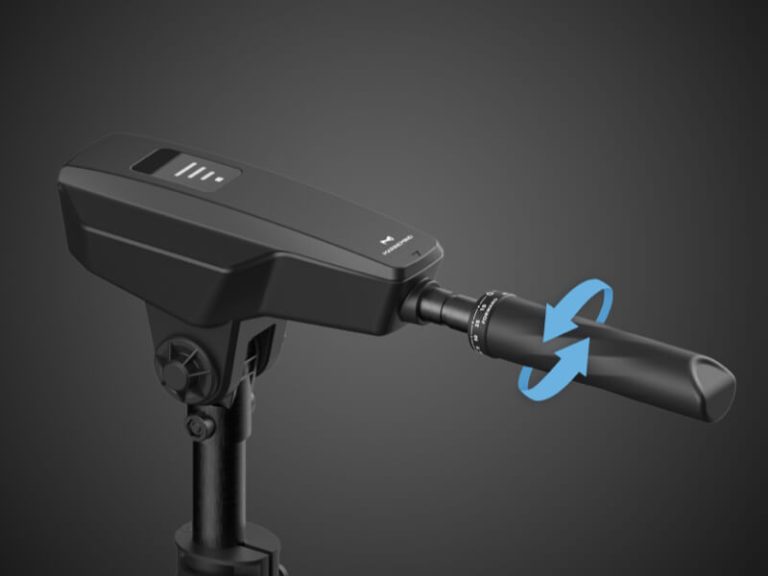

Anti-slip Tiller
Ensures safe and steady operation with its anti-slip F-N-R tiller control, offering you precise maneuverability every time

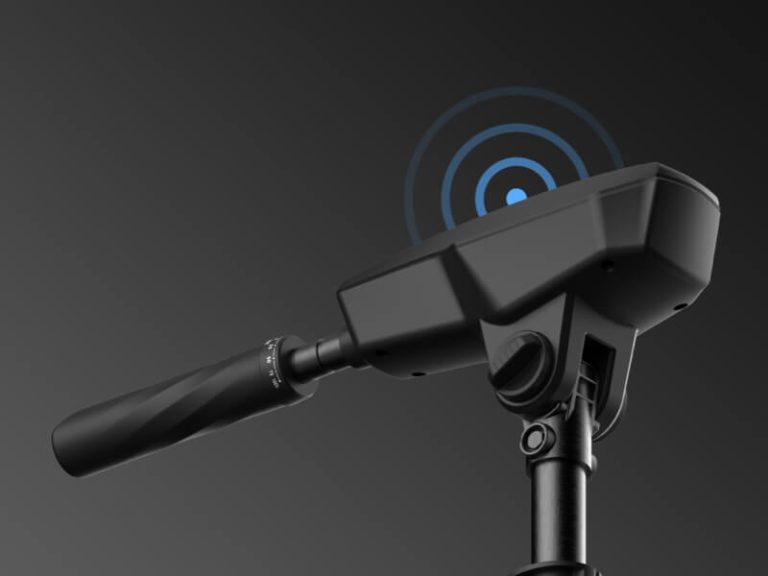

OTA Update
A upmarket function of OTA update and APP support.
Take a closer look to M1 Mini
For Use In
Freshwater
Max Thrust1
50 lbs per ISO 13342
Voltage
12V
Max Amp Draw
65A
Power
780W
For Boat
9-19 ft
Shaft Length
26 / 35 inch
Mounting
Transom-Mount
Motor Type
FOC-brushless
Control
Hand / Tiller
Speed
Variable
Warranty
2-Year*, lifetime warranty on shaft
Waterproof7
IPX7
Appearance and features
CTN LxWxH
170x77x45 cm
Gross Weight
10.3 Kg
Paint
Black
Shaft Material
Aluminum Alloy
Propeller
3 Blade
You could be part of the distribution
As a young startup, we are developing our dealer network globally.
It’s a great honor to have you join the global dealership and present high-quality electric trolling motor to customers worldwide.
Disclaimers
- In compliance with ISO standard 13342, Data comes from the MARINEMIND Test Laboratory.
- Compared with the MARINEMIND P02 v0.55.
- The battery run-time data comes from the MARINEMIND Test Laboratory. Test date: April 10, 2025. Test Environment Standards: Environmental ambient temperature: 25°C ± 1°C. Operating temperature of the phone when charging starts: 25°C ± 1°C. Test process: Actual battery life experienced by users may be affected by environmental factors, including wave, wind, and usage habits, device age, and other settings.
- The battery life data comes from the MARINEMIND Test Laboratory. Test date: April 10, 2025.
- M1 mini is water resistant under normal usage conditions. In controlled laboratory settings, it has been tested to comply with IEC60529 standards, achieving IPX7 and IPX8 ratings. The IPX8 water resistance test conditions are as follows: ① Turntable speed: (5±1) r/min; ② Spray angles: 0°, 30°, 60°, and 90°; ③ Flow rate: (15±1) L/min; ④ Water temperature: (80±5)℃; ⑤ Test duration: 30s per angle; ⑥ Phone placement: horizontally, with the screen facing up. The IPX8 water resistance test conditions are: ① Still freshwater, 1.5 meters deep; ② Test duration: 30 minutes; ③ Water temperature difference with the product not exceeding 5°C. Please do not charge the phone while it is wet. The scenarios in daily life differ from laboratory conditions, so do not immerse the phone in water, or let it come into contact with seawater or other liquids like beverages during everyday use. After exposure to rain, submersion, or splashing, liquid may block the microphone, earpiece, or speaker openings, causing audio issues during calls or playback. Its functionality can be restored by shaking off the water and allowing it to air dry. The water and dust resistance capability might decrease due to wear and tear from daily use.Damage caused by immersion in liquids is not covered by the warranty.
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.- Product Imagery and photography are illustrative only and are not screencaptures directly taken from the product. Please refer to the actual product experience.
* Terms and Condiction applied
** Engineering enhancements are ongoing and may not be reflected in the pictures, videos and specifications.
