M3 Trolling Motor
Designed to be
Precise, Efficient, and Powerful
Advanced Pilot Modes
12V System
55lbs Thrust
Get to know M3
Experience the smoothest ride with the M3 Trolling Motor. Every movement feels natural and responsive, letting you focus on what matters most-catching fish. Whether you’re navigating lakes or rivers, M3 delivers seamless control that makes every trip effortless.

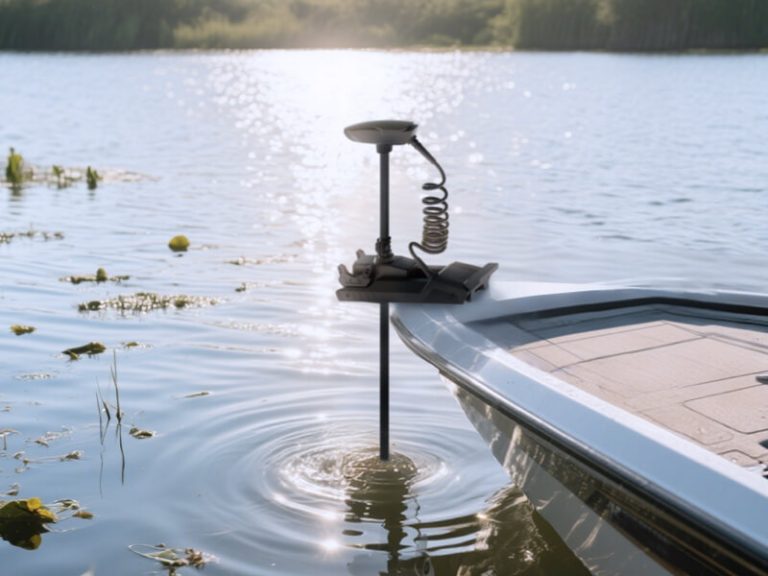

Whisper-Quiet Operation
Library-Quiet Thrust:
Sneak Up on Trophy Catches.
Keep Waters Undisturbed.
Precise Anchoring
Pinpoint accuracy like a surgeon.
Hold position within 1m
every time.
Hold position within 1m
every time.

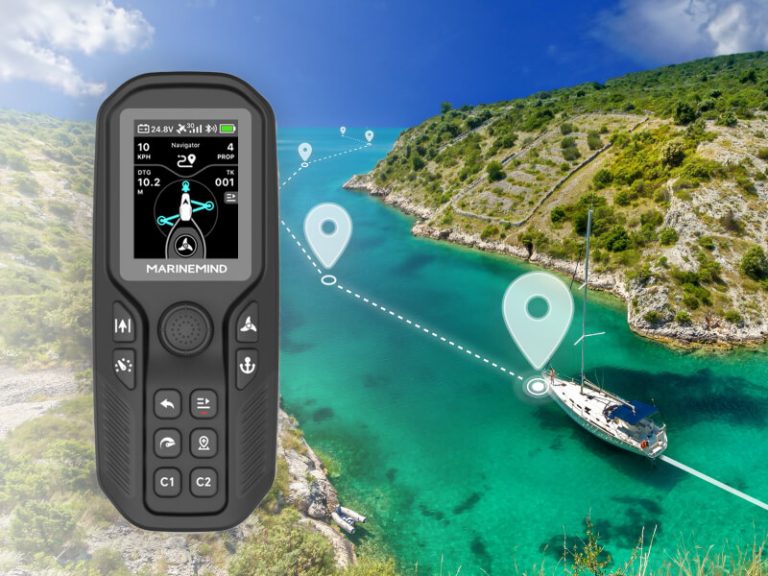

Ergonomic Thumbsticks
Sunlight-Readable MIP Display.
Smooth, Precise Maneuvering
at Your Fingertips
Smooth, Precise Maneuvering
at Your Fingertips
Smart Torque Control
Fish Longer with Dynamic Load. Our 85% efficient motor adapts to currents.
Fish Longer, Charge Less2
100,000-Hour Endurance

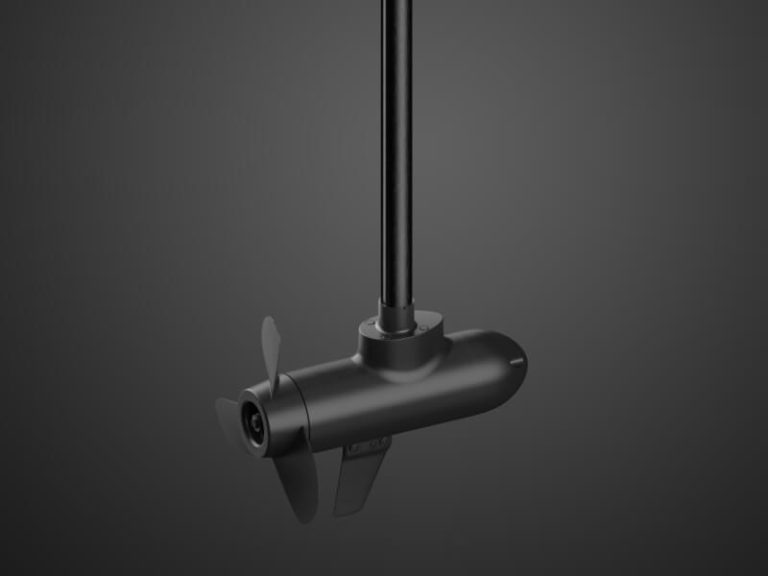

A High Strength Shaft
Built for Decade-Long Journeys
with a Lifetime Warranty*
Built for Decade-Long Journeys
with a Lifetime Warranty*

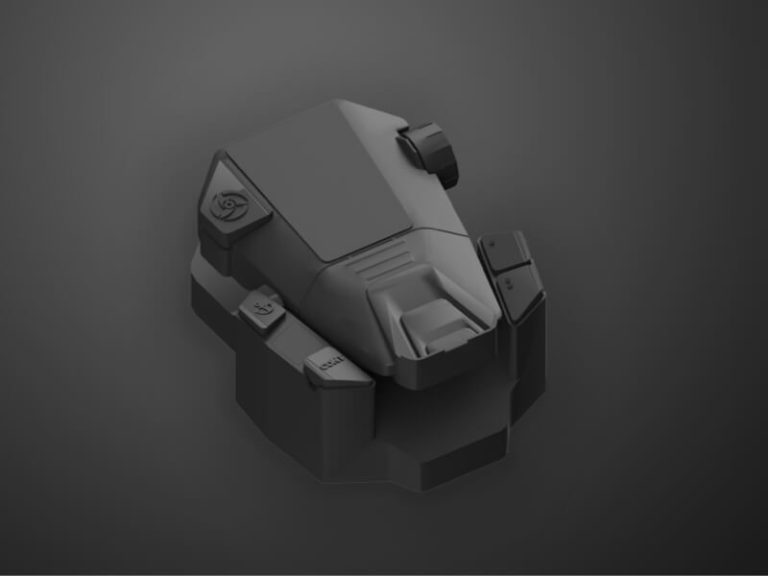

Step Into Control
Customizable Pressure Sensitivity
for Total Hands-Free Response and Smooth Steering
for Total Hands-Free Response and Smooth Steering
Take a closer look to M3
For Use In
Freshwater
Max Thrust1
55 lbs per ISO 13342
Voltage
12V
Max Amp Draw
60A
Power
720W
Built-in Heading Sensor
YES
Built-in GNSS
YES (Multi-band GNSS)
Control
Wireless Remote;Foot Pedal; APP
Mounting
Bow; Bolt-on
For Boat
6-23 ft
Shaft Length
45 / 54 inch

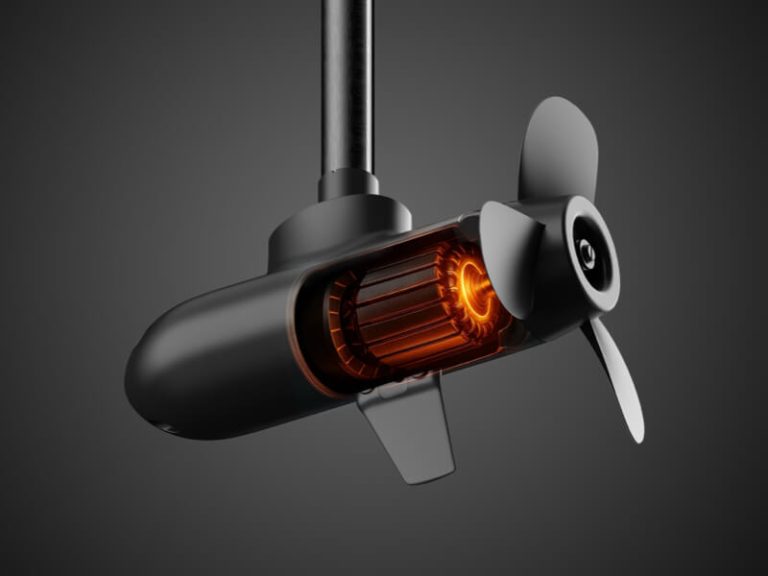

Motor Type
FOC-brushless
Steering System
Electric; Brushless
Anchor Modes
Yes
Speed
Variable / 20 Steps
Warranty
2-Year*, lifetime warranty on shaft
Water Rating7
IPX7
Appearance and features
CTN LxWxH
170x77x45 cm
Gross Weight
22 Kg
Paint
Black
Shaft Material
Aluminum Alloy
Stow / Deploy
Lift-Assist
Propeller
3 Blade
Wireless Remote
BLE; MIP Display
Foot Pedal Style5
Heel-Toe; Electric
Anti-tangle
Yes
Transducer Option
No**
Dual Sync System
Yes
Power-trim
No
Auto-deploy
No
NMEA 2000
Supported
Advanced Pilot Modes
Utilize multiple-bands GNSS technologies including GPS, GLONASS and BDS, along with leading algorithms, the M3 achieved best-in-class Advanced Pilot Modes.
Course-fix
Heading-Fix
Crusie
Drift
Circle
Navigation
Anchor
Jog
record
You could be part of the distribution
As a young startup, we are developing our dealer network globally.
It’s a great honor to have you join the global dealership and present high-quality electric trolling motor to customers worldwide.
Disclaimers
- The motor thrust is measured in accordance with ISO standard 13342 and the data comes from the MARINEMIND test laboratory.
- In Compared with the MARINEMIND P02 bow mount trolling motor v0.55.
- The battery run-time data comes from the MARINEMIND Test Laboratory. Test date: April 10, 2025. Test Environment Standards: Environmental ambient temperature: 29°C ± 2°C. Operating temperature of the motor when test starts: 29°C ± 1°C, on open water, level 2-4 wind. Actual battery life experienced by users may be affected by environmental factors, including wave, wind, and usage habits, device age, and other settings.
- This feature is exclusive to M3 Foot Padel Package. Support may be expanded to additional devices in the future
- M3 is water resistant under normal usage conditions. In controlled laboratory settings, it has been tested to comply with IEC60529 standards, achieving IPX7 and IPX8 ratings on the lower unit. The IPX7 water resistance test conditions are as follows: ① Turntable speed: (5±1) r/min; ② Spray angles: 0°, 30°, 60°, and 90°; ③ Flow rate: (15±1) L/min; ④ Water temperature: (80±5)℃; ⑤ Test duration: 60s per angle; ⑥motor placement: horizontally, with the head up. The IPX8 water resistance test conditions are: ① Still freshwater, 1.5 meters deep; ② Test duration: 30 minutes; ③ Water temperature difference with the product not exceeding 5°C. Do not let it come into contact with seawater or other liquids like acid during everyday use. Spray with clean water, shake off the water and allow it to air dry to restore its function. The water and dust resistance capability might decrease due to wear and tear from daily use. Damage caused by immersion in liquids is not covered by the warranty.
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.- Product Imagery and photography are illustrative only and are not screencaptures directly taken from the product. Please refer to the actual product experience.
* Terms and Condiction applied
** Engineering enhancements are ongoing and may not be reflected in the pictures, videos and specifications.
